XCTB 101.35

CTB 101.35, CTB – plug-in current transformer, product image

CTB 101.35, CTB – plug-in current transformer, technical drawing 3

CTB 101.35, CTB – plug-in current transformer, technical drawing 2

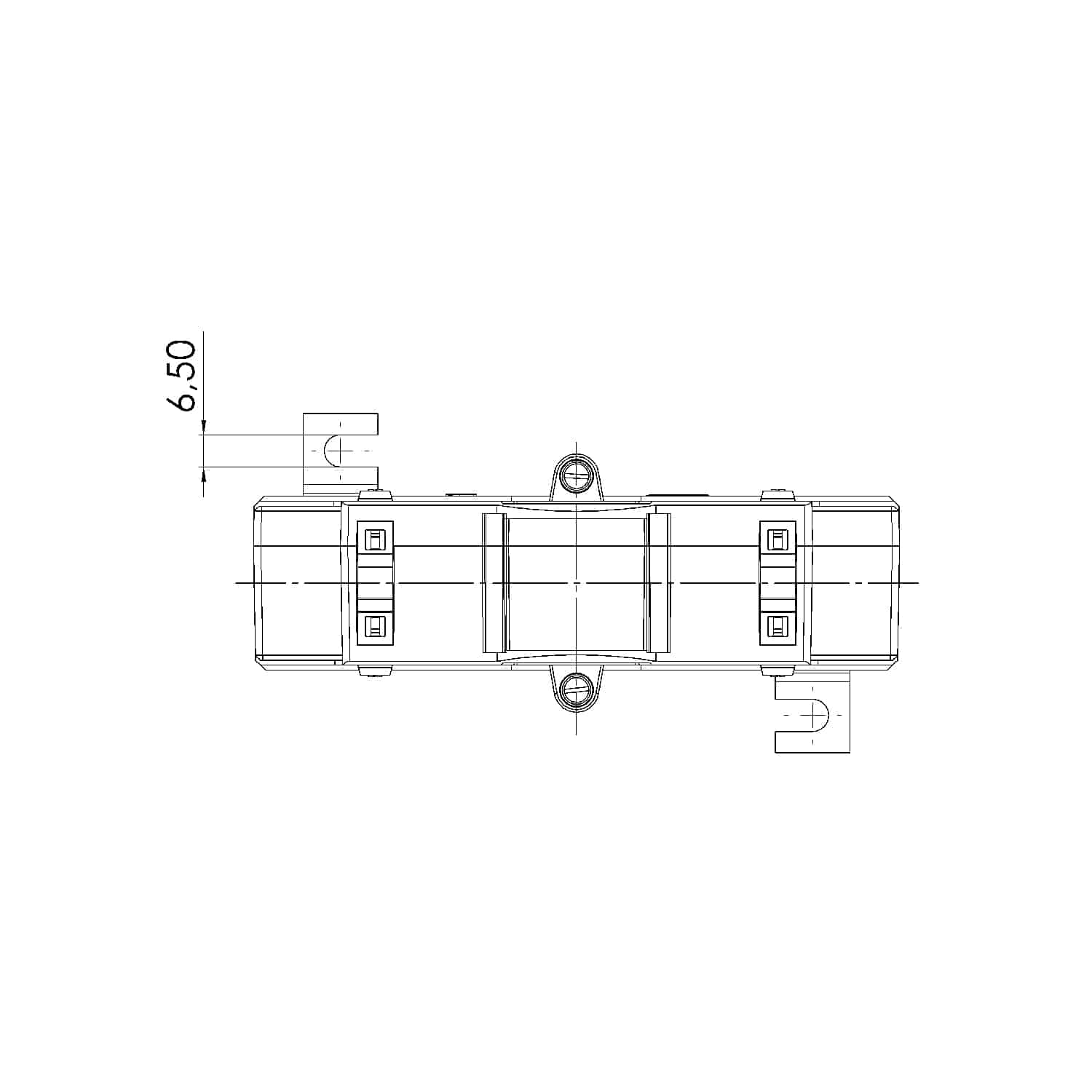

CTB 101.35, CTB – plug-in current transformer, technical drawing 1

XCTB Quick-Fix

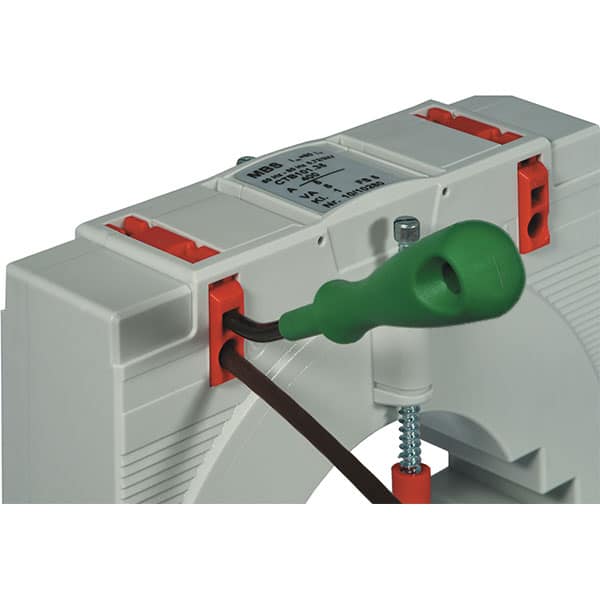

XCTB CageClamp

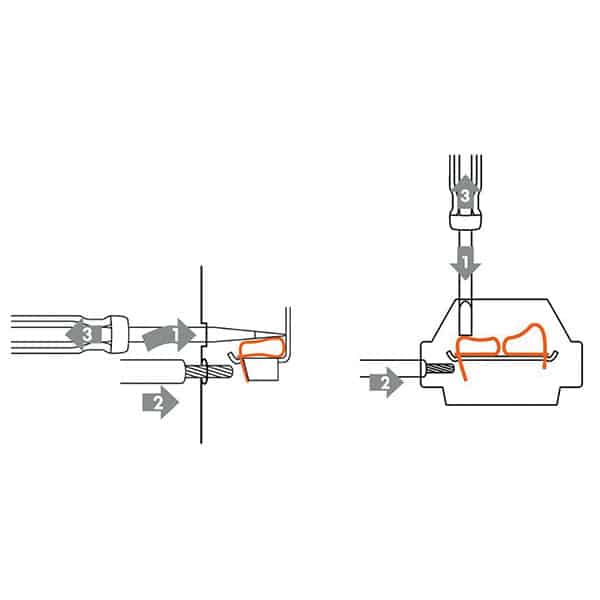

XCTB – Low-voltage current transformer application

XCTB - Low-voltage current transformer

XCTB 101.35

Primary Current

Secondary Current

Burden (VA)

Accuracy Class

Clear

Add to watch list

Export as PDF

EAN: 4061701353570 SKU: 51-0506 Categories: Current transformer for harmonics measurements up to 20 kHz, XCTB - Low-voltage current transformer

Bus bar 1 in mm	100x10
Bus bar 2 in mm	80x30
Round conductor in mm	70
Width in mm	130
Height in mm	147
Depth in mm	52
Snap-on mounting
Sealed shutters
Sealed shutters 2

Primary Current	400, 500, 600, 750, 800, 1000, 1200, 1250, 1500, 1600, 2000
Secondary Current	1, 5
Burden (VA)	2,5, 5
Accuracy Class	0,2, 0,2S, 0,5, 0,5S, 1
RVERWEND_2	1

Therm. nominal continuous current I_cth: 1.2 x I_pr
Therm. nominal short-time current I_th: 60 x I_pr, 1 s
Max. operating voltage U_m: 1,2 kV
Isolation test voltage: 6 kV, U_eff, 50 Hz, 1 min
Lightning impulse voltage: 12 kV, 1.2/50 µs
Nominal rated frequency: 50/60 Hz
Isolation class: E
